Горизонтальный V-образный пазовый станок

Горизонтальные V-образные пазовые станки — это крупногабаритные станки с ЧПУ, используемые для прорезания пазов в листовом металле. Они оснащены стационарным рабочим столом и подвижным портальным держателем инструмента, способным обрабатывать сложные пазы, такие как прямые и V-образные.

Благодаря широкому диапазону обработки и высокой точности, они особенно подходят для обработки крупных деталей из листового металла и широко используются в машиностроении и производстве металлоконструкций.

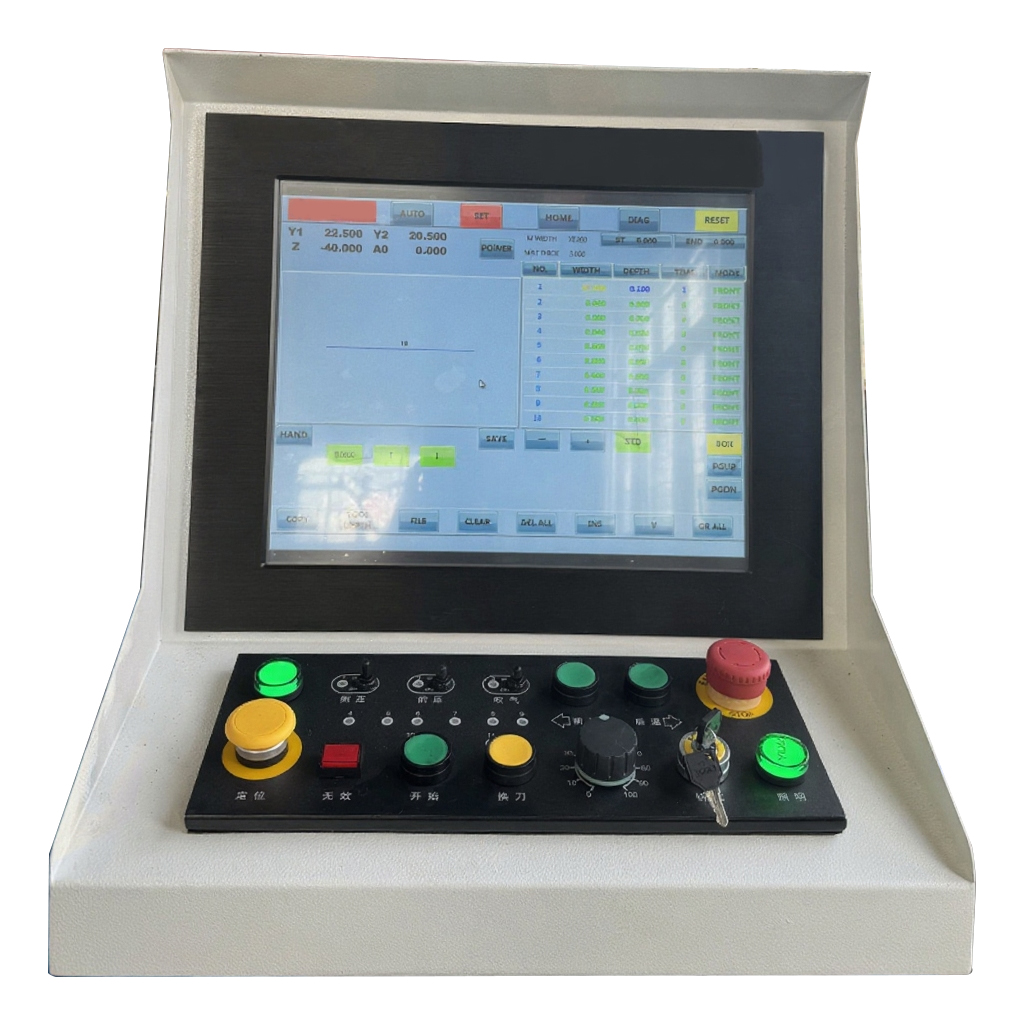

Control System

The Abel CNC Control System delivers high-precision machining with support for multiple programming methods, including G-code. Its intuitive interface and automation features boost efficiency, while real-time monitoring ensures accuracy.

Built for reliability, it handles complex tasks with fast response times and minimal maintenance. Ideal for industrial use, Abel CNC combines precision, ease of use, and durability for superior performance.

Запросить котировку

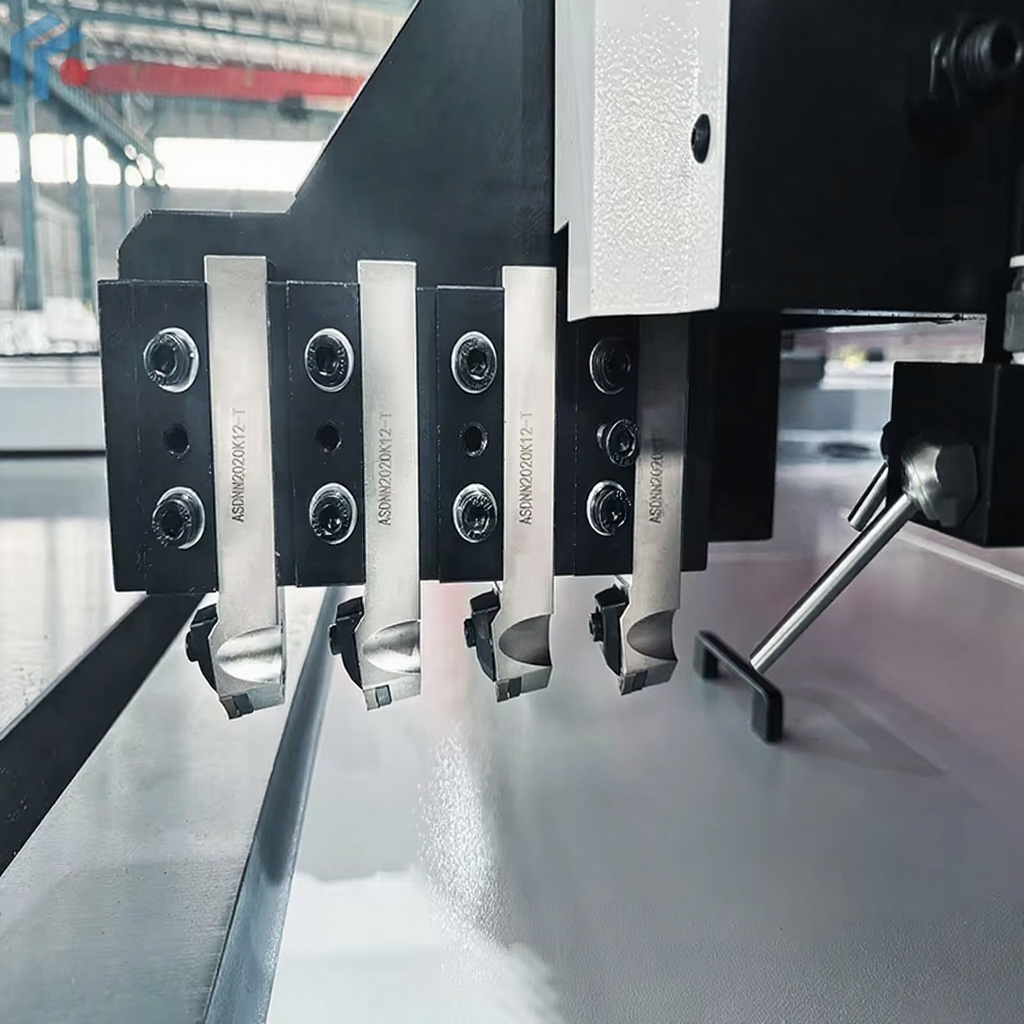

Grooving Blade

Grooving blades are typically made of high-strength steel or cast iron, offering excellent rigidity and wear resistance, ensuring stable support and precise positioning of the tool.

Grooving blades are typically manufactured from high-speed steel or cemented carbide, offering high hardness, wear resistance, and heat resistance, making them suitable for planing a variety of sheet metals.

Запросить котировку

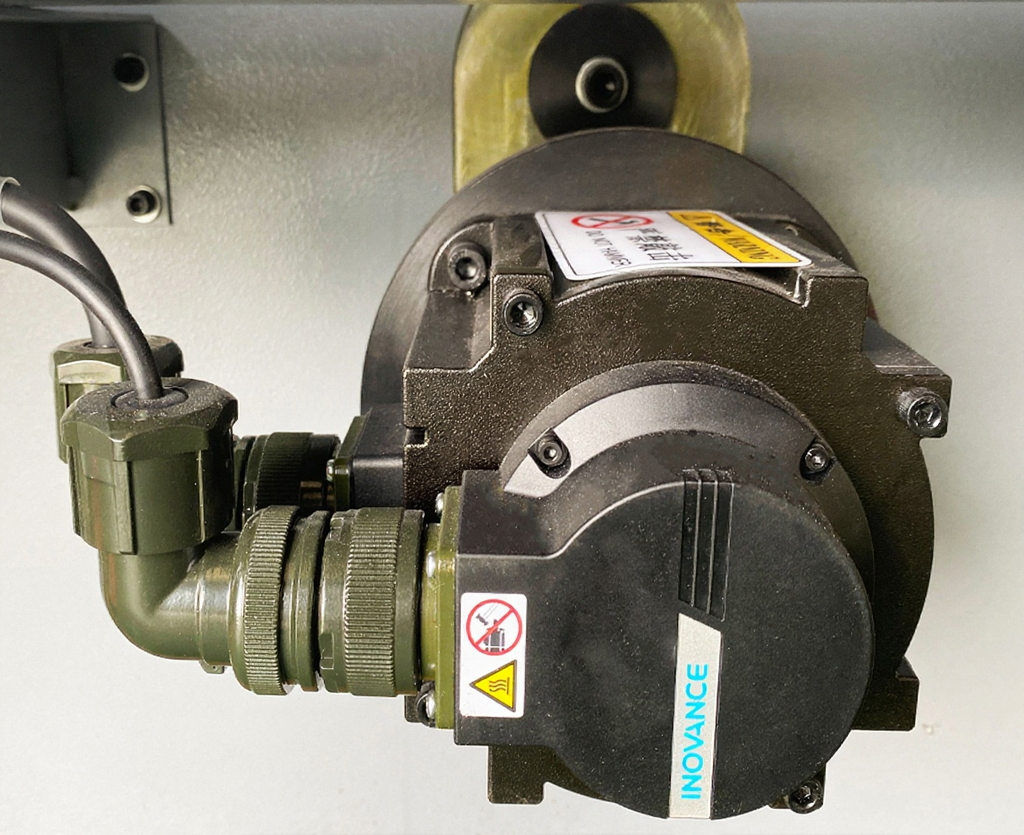

Servo Motor

This V grooving machine is driven by a servo motor and equipped with an advanced CNC system, ensuring long-term stability and reliability.

Servo motors enable precise position and speed control, making them ideal for applications requiring precise positioning and motion control.

Запросить котировку

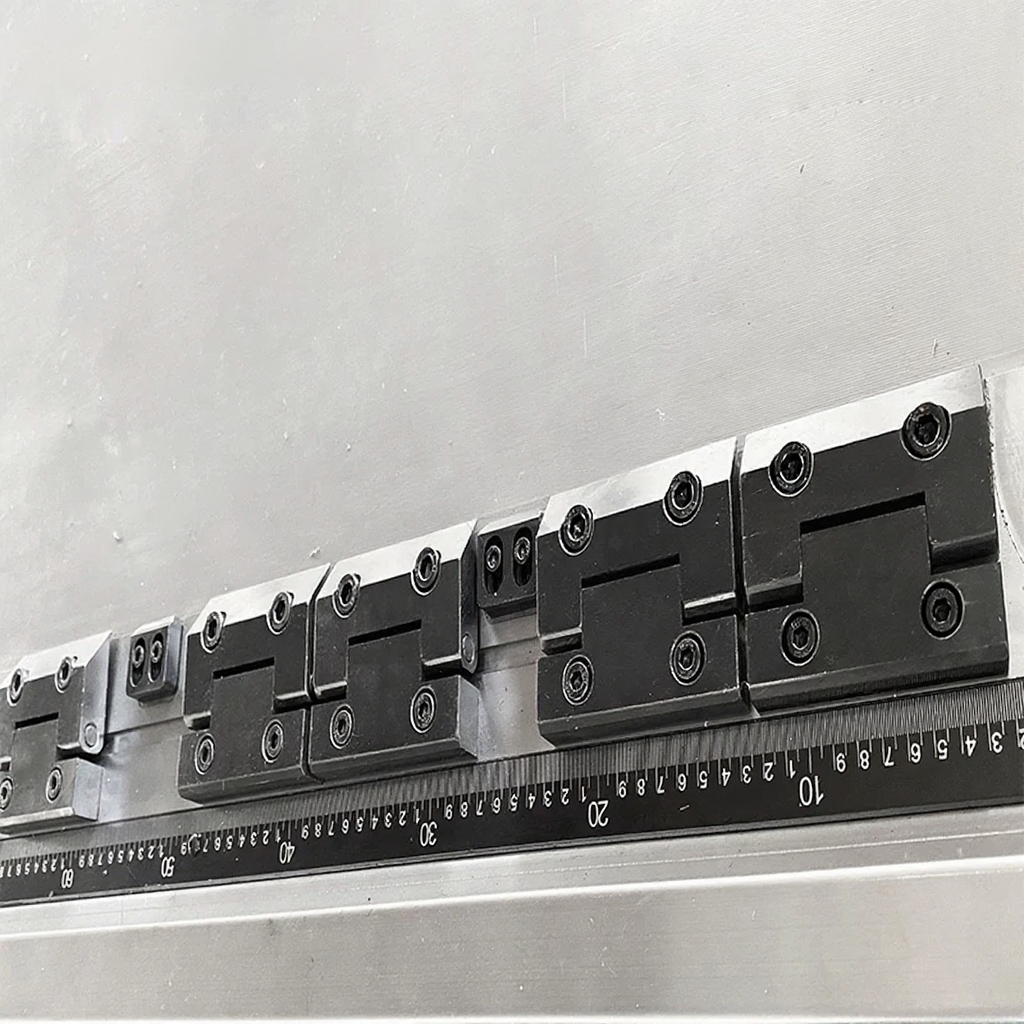

Pressing Plate

The pressing plate of a horizontal V grooving machine is constructed from high-strength steel or alloy steel, securing the workpiece through mechanical or hydraulic clamping to ensure machining accuracy.

The adjustable design accommodates metal sheets of varying sizes and shapes and features precise positioning to ensure consistent slotting. Pressing plate stability is a key factor in ensuring the machine.

Запросить котировку

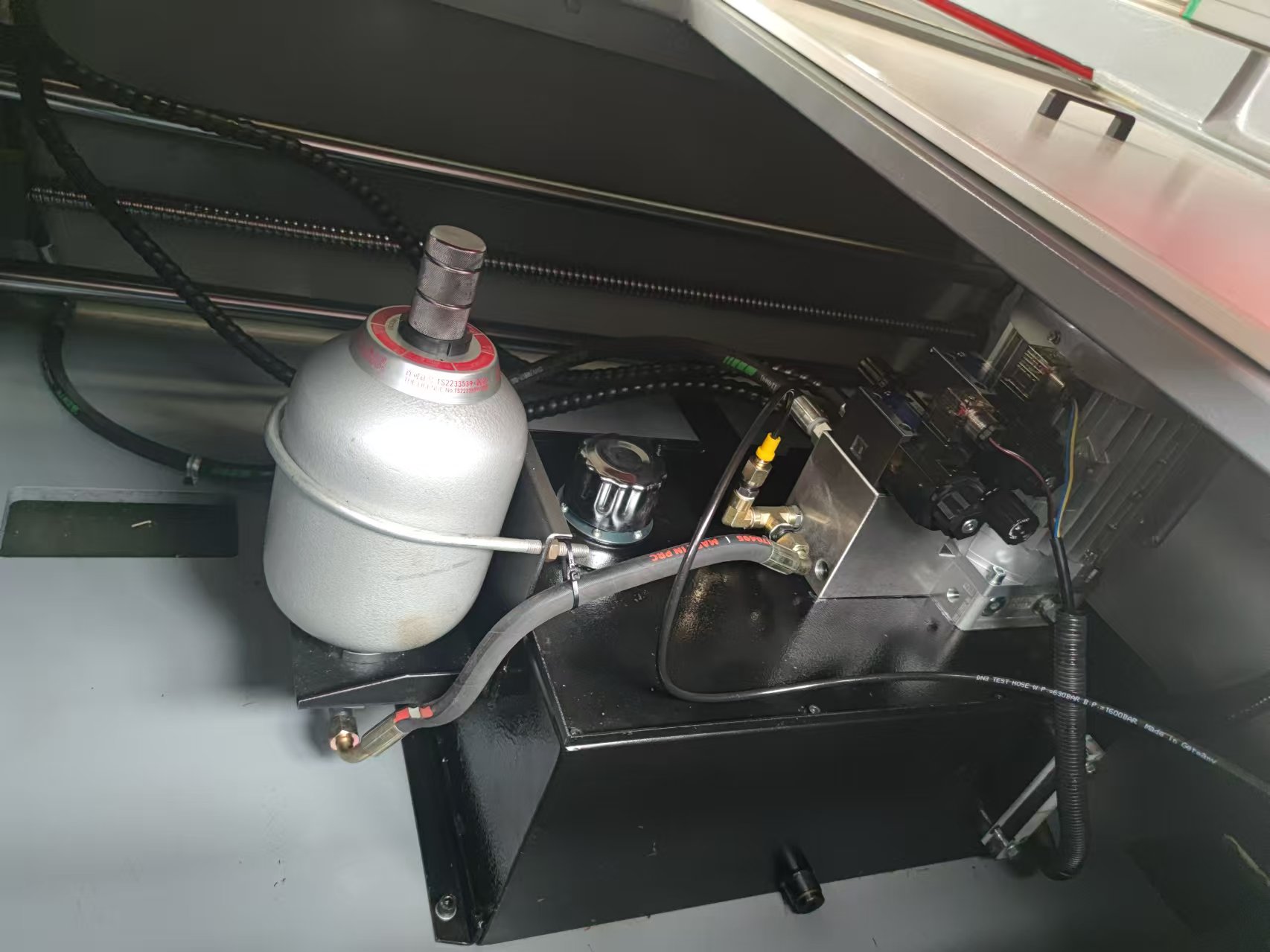

Hydraulic System

The horizontal V grooving machine adopts the Japanese Yuken hydraulic system.

The exceptional performance of the machine guarantees the ongoing durability and robustness of its powertrain.

Запросить котировку

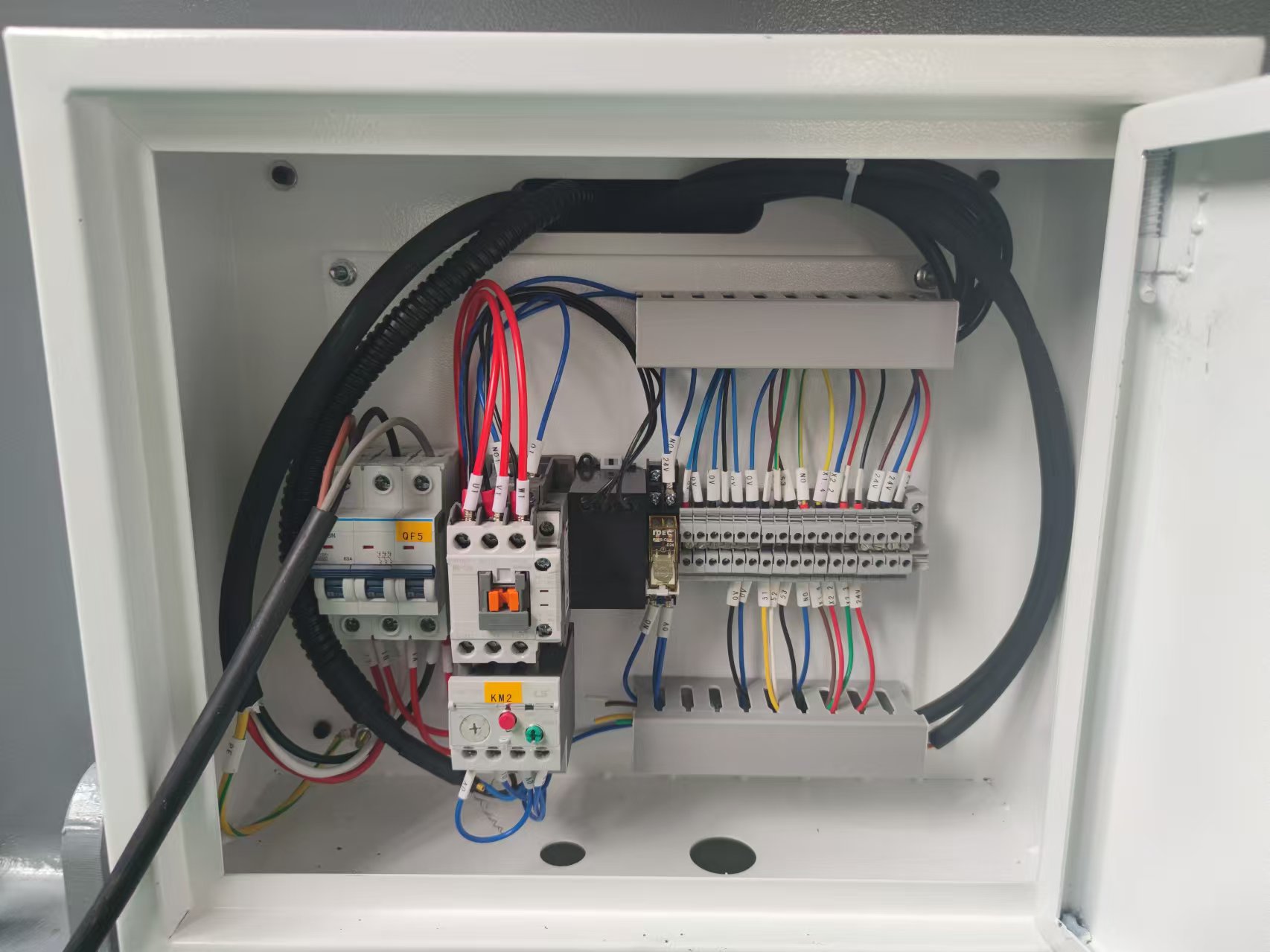

Electrical Parts

Advanced technology integrated into the system meets high operational demands, optimizing performance and productivity.

The system is designed with simplicity in mind, facilitating straightforward maintenance procedures.
